U of MN Supercomputing Institute Volume 2

More pictures from the University of Minnesota Supercomputing Institute taken on 3/17/2000

Description Small version of picture. Click picture for larger version.
This is a 4-processor Origin200 server with R10000 processors. This the file server for the Origin2000 Lab systems.

Large version of this picture

Behind the Origin2000 Systems

Large version of this picture

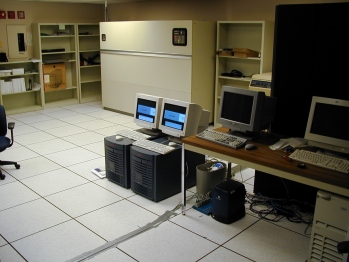

Another view of the Origin machine room. The control workstation for the SP frame is on the right. Under the table on the left is an SGI O2. This O2 is used as a console server for the Origin Lab compute systems and other Origin servers in the building.

Large version of this picture

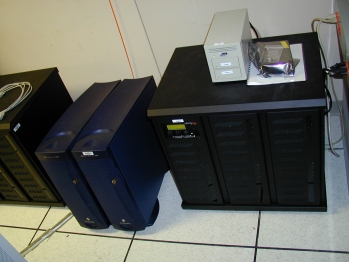

The black cable going between the alpha servers is the Memory Channel cable. Since there are only two machines here, no memory channel hub or switch is necessary.

Large version of this picture

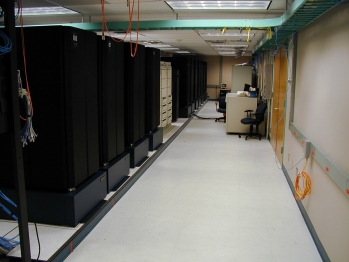

This picture is from our largest machine room. It shows our IBM SP. As of this writing, there are a total of 224 processors. Soon, there will be an upgrade performed and we will have 388 processors. The upgrade will take place in existing frames so no additional racks will be necessary. We will be getting a newer tape system and more disk space and that will require new racks and equipment.

Large version of this picture

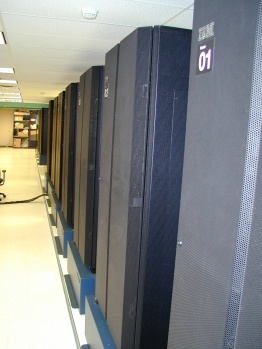

Another view.

Large version of this picture

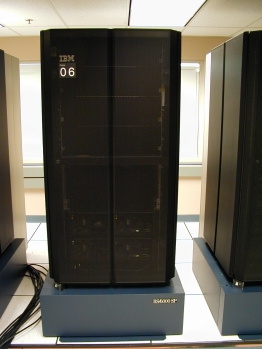

Another view of a single frame.

Large version of this picture

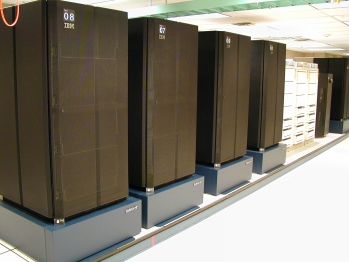

A view from the opposite side of the machine room.

Large version of this picture

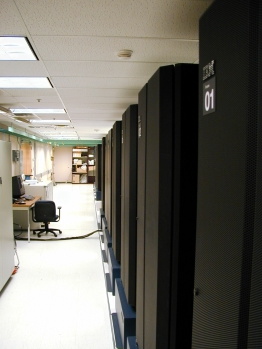

Another view.

Large version of this picture
